Open loop stepper motor
Two phase hybrid stepper motor is a type of hybrid motor. The two-phase hybrid stepper motor consists of a stator and a rotor.
The common stator has 8 or 4 poles, with a certain number of small teeth evenly distributed on the pole surface; The coil on the pole can be energized in two directions. Its rotor is also composed of two pieces of teeth with a certain number of small teeth evenly distributed on the circumference. These two teeth are offset by half a tooth pitch from each other. There is an axially magnetized annular permanent magnet sandwiched between two teeth. Obviously, all teeth on the same rotor blade have the same polarity, while the polarity of two different rotor blades is opposite.

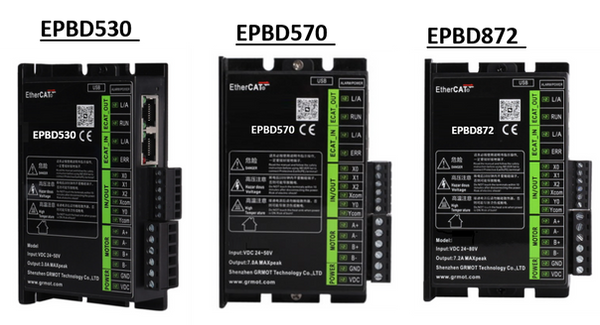

EtherCAT Bus Type Motor Driver
The Ether CAT bus hybrid stepper motor driver product is an Ether CAT bus hybrid stepper server driver, which adopts the standard Ether CAT (COE) communication protocol and has built-in CIA402 motion control protocol for cycle synchronous position (CSP), cycle synchronous speed mode (CSV), contour position (PP), and contour speed (PV and HM) modes.Adopting the latest 32-bit DSP processor and motor control algorithm, it runs smoothly at low speeds, improves the torque of the motor during medium to high speed operation, and can be replaced in some application scenarios.Built in button input and digital display output, can set slave operation parameters such as slave ID number, baud rate, and running direction, and display driver.
